VLAN Configuraion

1v0

Asked by 1v0,

 Share

Question

1v0 Newbie

1v0

Posted
Posted

Здравейте,

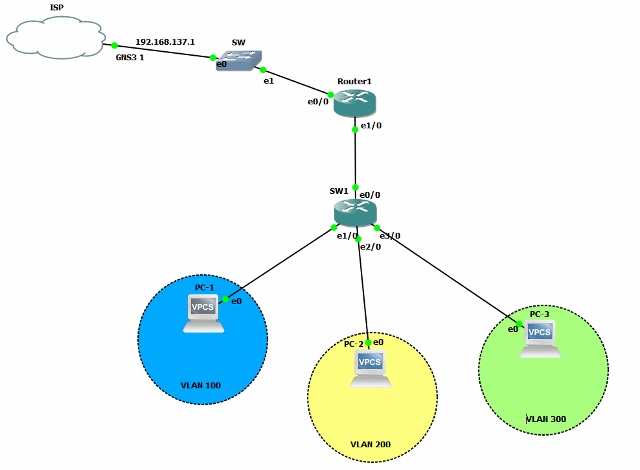

  От няколко дни се опитвам да конфигурирам два микротика с VLAN-и. Работя под виртуална среда GNS3. Прилагам схема:  Мина ли през trunk между двата рутера, клиентите не получават адреси от DHCP сървъра. Имате ли идеи къде греша?

Благодаря!


R1 config:

/interface bridge
add fast-forward=no name=VLAN
/interface ethernet
set [ find default-name=ether1 ] advertise=10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:A4:C2:79 name=ether1-WAN speed=\
    100Mbps
set [ find default-name=ether5 ] advertise=10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:2E:60:0A name=ether2 speed=\
    100Mbps
set [ find default-name=ether6 ] advertise=10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:5C:79:88 name=ether3 speed=\
    100Mbps
set [ find default-name=ether7 ] advertise=10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:5E:C6:7A name=ether4 speed=\
    100Mbps
set [ find default-name=ether2 ] mac-address=08:00:27:A0:C1:B9 name=ether5
set [ find default-name=ether3 ] mac-address=08:00:27:CE:50:7D name=ether6
set [ find default-name=ether4 ] name=ether7
/interface vlan
add interface=VLAN name=vlan100 vlan-id=100
add interface=VLAN name=vlan200 vlan-id=200
add interface=VLAN name=vlan300 vlan-id=300
/interface list
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=dhcp_pool0 ranges=192.168.10.2-192.168.10.254
add name=dhcp_pool1 ranges=192.168.20.2-192.168.20.254
add name=dhcp_pool2 ranges=192.168.30.2-192.168.30.254
/ip dhcp-server
add address-pool=dhcp_pool0 disabled=no interface=vlan100 name=dhcp1
add address-pool=dhcp_pool1 disabled=no interface=vlan200 name=dhcp2
add address-pool=dhcp_pool2 disabled=no interface=vlan300 name=dhcp3
/tool user-manager customer
set admin access=own-routers,own-users,own-profiles,own-limits,config-payment-gw
/interface bridge port
add bridge=VLAN interface=ether2
/interface list member
add interface=ether1-WAN list=WAN
add list=LAN
/ip address
add address=192.168.10.1/24 interface=vlan100 network=192.168.10.0
add address=192.168.20.1/24 interface=vlan200 network=192.168.20.0
add address=192.168.30.1/24 interface=vlan300 network=192.168.30.0
/ip arp
add address=192.168.0.50 interface=ether1-WAN mac-address=08:00:27:A4:C2:78
/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=ether1-WAN
/ip dhcp-server network
add address=192.168.10.0/24 dns-server=8.8.8.8 gateway=192.168.10.1
add address=192.168.20.0/24 dns-server=8.8.8.8 gateway=192.168.20.1
add address=192.168.30.0/24 dns-server=8.8.8.8 gateway=192.168.30.1
/ip firewall nat
add action=masquerade chain=srcnat
/ip route
add disabled=yes distance=1 gateway=192.168.137.1
/system identity
set name=Router1

SW1 Config:

/interface bridge
add fast-forward=no name=VLAN100
add fast-forward=no name=VLAN200
add fast-forward=no name=VLAN300
/interface ethernet
set [ find default-name=ether1 ] advertise=\
    10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:A4:C2:79 speed=\
    100Mbps
set [ find default-name=ether2 ] advertise=\
    10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:2E:60:0A speed=\
    100Mbps
set [ find default-name=ether3 ] advertise=\
    10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:5C:79:88 speed=\
    100Mbps
set [ find default-name=ether5 ] advertise=\
    10M-half,10M-full,100M-half,100M-full mac-address=08:00:27:5E:C6:7A name=\
    ether4 speed=100Mbps
set [ find default-name=ether6 ] mac-address=08:00:27:A0:C1:B9 name=ether5
set [ find default-name=ether7 ] mac-address=08:00:27:CE:50:7D name=ether6
set [ find default-name=ether8 ] name=ether7
set [ find default-name=ether4 ] name=ether8
/interface vlan
add interface=ether1 name=vlan100 vlan-id=100
add interface=ether1 name=vlan200 vlan-id=200
add interface=ether1 name=vlan300 vlan-id=1
/interface list
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=dhcp ranges=192.168.1.1-192.168.1.50
/ip dhcp-server
# DHCP server can not run on slave interface!
add address-pool=dhcp disabled=no interface=ether2 name=dhcp1
/tool user-manager customer
set admin access=\
    own-routers,own-users,own-profiles,own-limits,config-payment-gw
/interface bridge port
add bridge=VLAN100 interface=ether2
add bridge=VLAN100 interface=vlan100
add bridge=VLAN200 interface=vlan200
add bridge=VLAN200 interface=ether3
add bridge=VLAN300 interface=ether4
add bridge=VLAN300 interface=vlan300
/interface list member
add interface=ether1 list=WAN
add list=LAN
/ip arp
add address=192.168.0.50 interface=ether1 mac-address=08:00:27:A4:C2:78
/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=ether1
/ip dhcp-server network
add address=192.168.1.0/24 gateway=192.168.1.1 netmask=24
/ip firewall nat
add action=masquerade chain=srcnat
/ip route
add disabled=yes distance=1 gateway=192.168.137.1
/system identity
set name=SW1





Link to comment
Share on other sites

3 answers to this question

Recommended Posts

  • 0
  • Administrator
111111 Rising Star

111111

Posted
  • Administrator
Posted

Аз ли нещо пропускам или тези влан-и си седят само на етернет портовете?

Няма нито един свързващ интерфейс между дата рутера, който да свързва влан бриджовете.



Направи един VLAN 400 който да е на WAN на двата рутера

и през него да са ти 100 200 и 300 свързани помежду си към бриджовете

Харесай поста ^^^
acer.gif htc.gifsigpic4024_2.gif

Форумът е за взаимопомощ а не за свършване на чужда работа

RB951Ui-2HnD / RBD25GR-5HPACQD2HPND&R11E-LTE6 /  RB952Ui-5ac2nD-TC

ɹɐǝɥ uɐɔ noʎ ǝɹoɯ ǝɥʇ 'ǝɯoɔǝq noʎ ɹǝʇǝınb ǝɥʇ

Link to comment
Share on other sites
  • 0
1v0
Newbie

1v0

Posted
  • Author
Posted

Ясно къде ми е била грешката.

Ако Ви разбрах правилно: Създавам нов VLAN-400, на интерфейс-2 на рутера и интерфейс-1 на "суича" (връзката между тях).

Второ ако може да поясните?

Link to comment
Share on other sites
  • 0
  • Administrator
111111 Rising Star

111111

Posted
  • Administrator
Posted

ами отпуши изолирания трафик да изтича на наякъде ;)

https://wiki.mikrotik.com/wiki/Manual:Interface/VLAN

https://wiki.mikrotik.com/wiki/Manual:CRS_examples

Харесай поста ^^^
acer.gif htc.gifsigpic4024_2.gif

Форумът е за взаимопомощ а не за свършване на чужда работа

RB951Ui-2HnD / RBD25GR-5HPACQD2HPND&R11E-LTE6 /  RB952Ui-5ac2nD-TC

ɹɐǝɥ uɐɔ noʎ ǝɹoɯ ǝɥʇ 'ǝɯoɔǝq noʎ ɹǝʇǝınb ǝɥʇ
