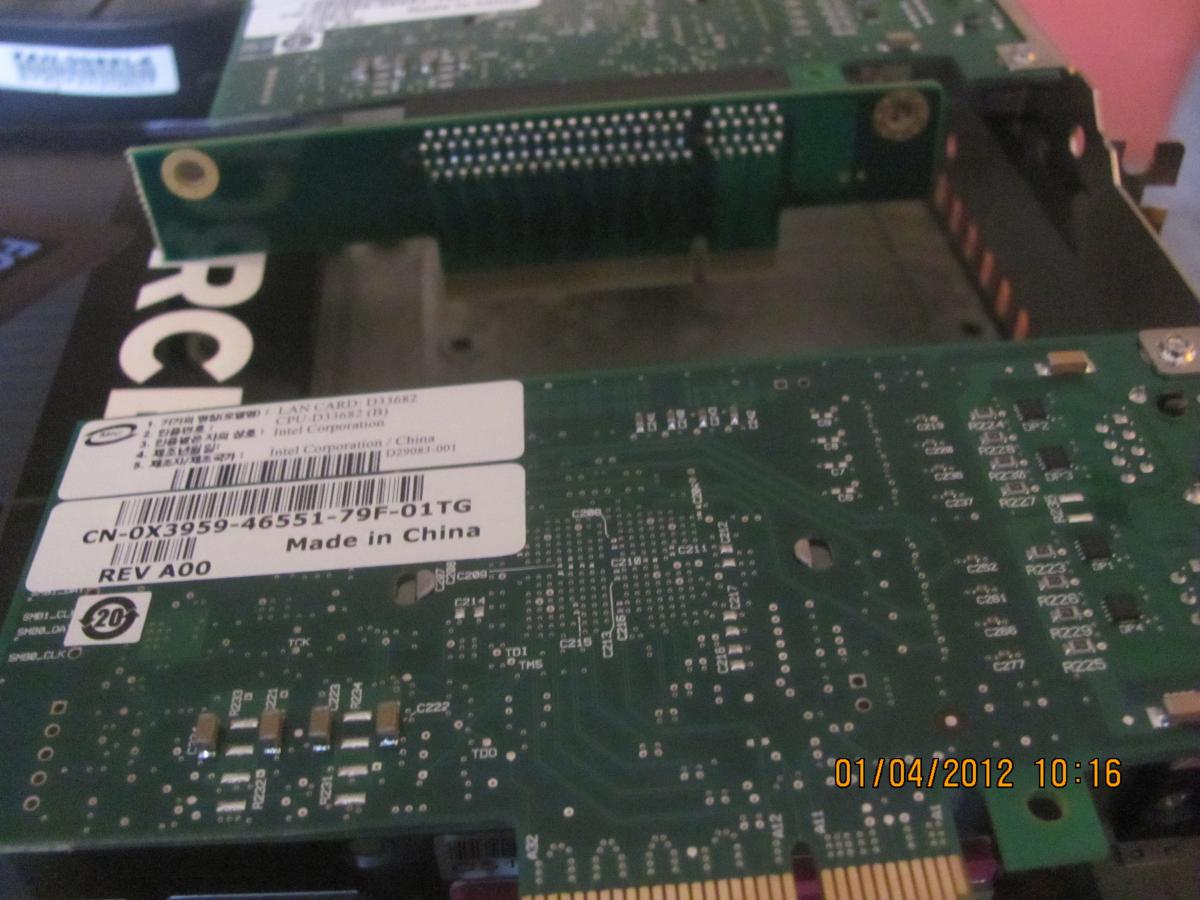

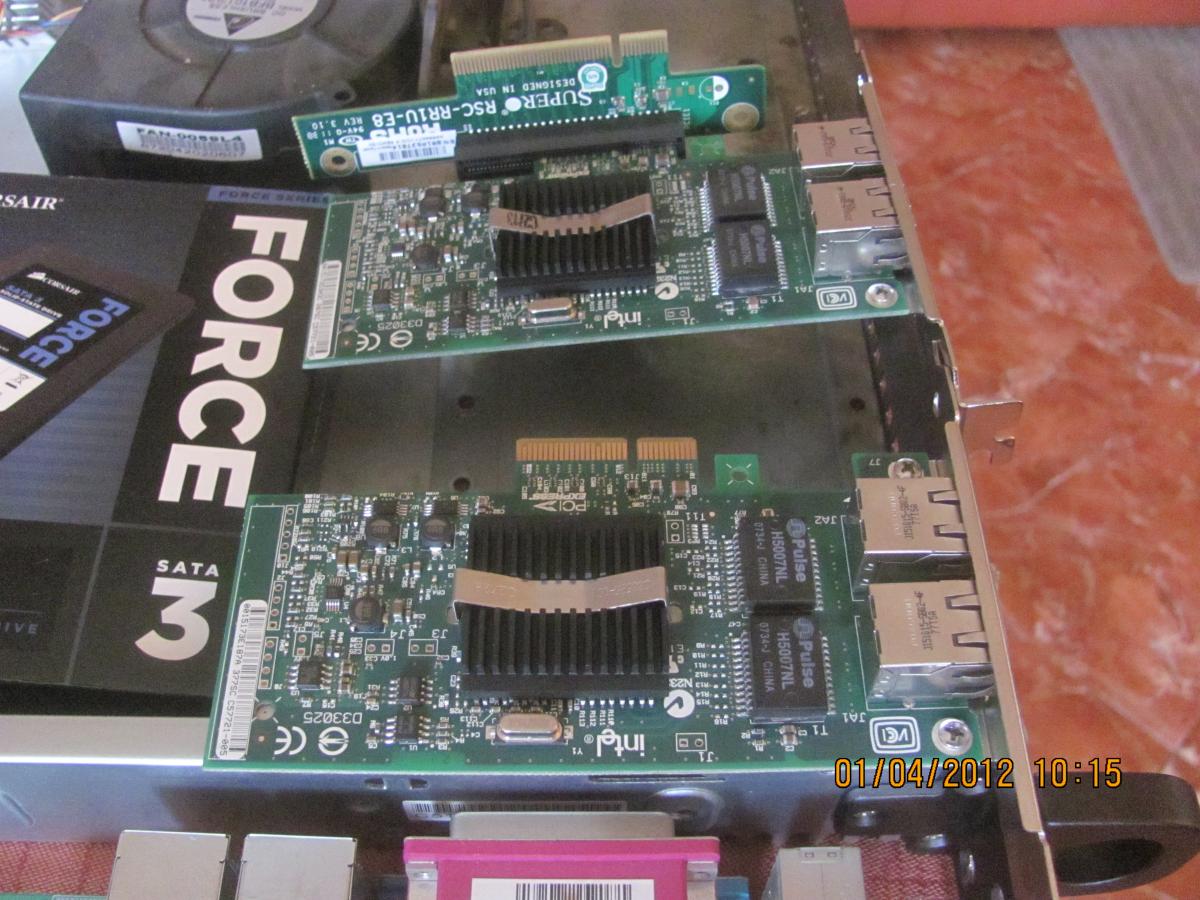

Продавам Dell Intel PCI-E Dual 10/100/1000 82571EB


Mile

Recommended Posts

Продавам Dell Intel PCI-E Dual 10/100/1000

82571EB

Превърнете си обикновена машина в перфектен рутер ^^

или хубав рутер в по-хубав :)

едит: Няма нищо общо с вградените решения

2 броя има налични за продан

Цена 120лв

Да не забравя и Intel Pro/1000 ET Quad


root@gw-svoge:~# dmesg | grep igb

[   11.014995] igb 0000:07:00.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18

[   11.015008] igb 0000:07:00.0: setting latency timer to 64

[   11.015269] igb 0000:07:00.0: irq 46 for MSI/MSI-X

[   11.015273] igb 0000:07:00.0: irq 47 for MSI/MSI-X

[   11.015276] igb 0000:07:00.0: irq 48 for MSI/MSI-X

[   11.015279] igb 0000:07:00.0: irq 49 for MSI/MSI-X

[   11.015283] igb 0000:07:00.0: irq 50 for MSI/MSI-X

[   11.015287] igb 0000:07:00.0: irq 51 for MSI/MSI-X

[   11.015290] igb 0000:07:00.0: irq 52 for MSI/MSI-X

[   11.015294] igb 0000:07:00.0: irq 53 for MSI/MSI-X

[   11.015299] igb 0000:07:00.0: irq 54 for MSI/MSI-X

[   11.260769] igb 0000:07:00.0: Intel(R) Gigabit Ethernet Network Connection

[   11.260772] igb 0000:07:00.0: eth0: (PCIe:2.5Gb/s:Width x4) 00:1b:21:a8:37:c8

[   11.261084] igb 0000:07:00.0: eth0: PBA No: G18771-001

[   11.261086] igb 0000:07:00.0: Using MSI-X interrupts. 4 rx queue(s), 4 tx que																																							 ue(s)

[   11.261101] igb 0000:07:00.1: PCI INT B -> GSI 19 (level, low) -> IRQ 19

[   11.261114] igb 0000:07:00.1: setting latency timer to 64

[   11.261372] igb 0000:07:00.1: irq 55 for MSI/MSI-X

[   11.261376] igb 0000:07:00.1: irq 56 for MSI/MSI-X

[   11.261379] igb 0000:07:00.1: irq 57 for MSI/MSI-X

[   11.261383] igb 0000:07:00.1: irq 58 for MSI/MSI-X

[   11.261387] igb 0000:07:00.1: irq 59 for MSI/MSI-X

[   11.261390] igb 0000:07:00.1: irq 60 for MSI/MSI-X

[   11.261394] igb 0000:07:00.1: irq 61 for MSI/MSI-X

[   11.261397] igb 0000:07:00.1: irq 62 for MSI/MSI-X

[   11.261401] igb 0000:07:00.1: irq 63 for MSI/MSI-X

[   11.510752] igb 0000:07:00.1: Intel(R) Gigabit Ethernet Network Connection

[   11.510755] igb 0000:07:00.1: eth1: (PCIe:2.5Gb/s:Width x4) 00:1b:21:a8:37:c9

[   11.511066] igb 0000:07:00.1: eth1: PBA No: G18771-001

[   11.511067] igb 0000:07:00.1: Using MSI-X interrupts. 4 rx queue(s), 4 tx que																																							 ue(s)

[   11.511077] igb 0000:06:00.0: PCI INT A -> GSI 16 (level, low) -> IRQ 16

[   11.511086] igb 0000:06:00.0: setting latency timer to 64

[   11.511336] igb 0000:06:00.0: irq 64 for MSI/MSI-X

[   11.511341] igb 0000:06:00.0: irq 65 for MSI/MSI-X

[   11.511344] igb 0000:06:00.0: irq 66 for MSI/MSI-X

[   11.511348] igb 0000:06:00.0: irq 67 for MSI/MSI-X

[   11.511352] igb 0000:06:00.0: irq 68 for MSI/MSI-X

[   11.511355] igb 0000:06:00.0: irq 69 for MSI/MSI-X

[   11.511359] igb 0000:06:00.0: irq 70 for MSI/MSI-X

[   11.511363] igb 0000:06:00.0: irq 71 for MSI/MSI-X

[   11.511366] igb 0000:06:00.0: irq 72 for MSI/MSI-X

[   11.760709] igb 0000:06:00.0: Intel(R) Gigabit Ethernet Network Connection

[   11.760712] igb 0000:06:00.0: eth2: (PCIe:2.5Gb/s:Width x4) 00:1b:21:a8:37:cc

[   11.761021] igb 0000:06:00.0: eth2: PBA No: G18771-001

[   11.761023] igb 0000:06:00.0: Using MSI-X interrupts. 4 rx queue(s), 4 tx que																																							 ue(s)

[   11.761036] igb 0000:06:00.1: PCI INT B -> GSI 17 (level, low) -> IRQ 17

[   11.761046] igb 0000:06:00.1: setting latency timer to 64

[   11.761297] igb 0000:06:00.1: irq 73 for MSI/MSI-X

[   11.761301] igb 0000:06:00.1: irq 74 for MSI/MSI-X

[   11.761305] igb 0000:06:00.1: irq 75 for MSI/MSI-X

[   11.761309] igb 0000:06:00.1: irq 76 for MSI/MSI-X

[   11.761312] igb 0000:06:00.1: irq 77 for MSI/MSI-X

[   11.761316] igb 0000:06:00.1: irq 78 for MSI/MSI-X

[   11.761320] igb 0000:06:00.1: irq 79 for MSI/MSI-X

[   11.761323] igb 0000:06:00.1: irq 80 for MSI/MSI-X

[   11.761327] igb 0000:06:00.1: irq 81 for MSI/MSI-X

[   12.010735] igb 0000:06:00.1: Intel(R) Gigabit Ethernet Network Connection

[   12.010738] igb 0000:06:00.1: eth3: (PCIe:2.5Gb/s:Width x4) 00:1b:21:a8:37:cd

[   12.011053] igb 0000:06:00.1: eth3: PBA No: G18771-001

[   12.011055] igb 0000:06:00.1: Using MSI-X interrupts. 4 rx queue(s), 4 tx que																																							 ue(s)

[   14.340506] igb: eth0 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX

[   14.410500] igb: eth1 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX

[   14.710504] igb: eth2 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX

[   14.940505] igb: eth3 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX

400лв



Edited by Mile
Link to comment
Share on other sites

все още налични за продан

още малко реклама:


root@gw-svoge:~# vmstat 1

procs -----------memory---------- ---swap-- -----io---- -system-- ----cpu----

r  b   swpd   free   buff  cache   si   so	bi	bo   in   cs us sy id wa

2  0	  0 1143028  93792 486640	0	0	 0	13   30   21  1  2 96  1

0  0	  0 1143424  93796 486640	0	0	 0	20 113260 2208  0  2 97  1

0  0	  0 1143424  93796 486640	0	0	 0	 0 113225 2134  0  3 97  0

0  0	  0 1159392  93796 486640	0	0	 0	 0 112018 2748  1  2 97  0

0  0	  0 1159392  93796 486640	0	0	 0	28 113969 2177  0  2 98  0

0  0	  0 1159424  93796 486640	0	0	 0	 0 113198 2507  0  2 98  0

0  0	  0 1159424  93796 486640	0	0	 0	 0 115273 2345  0  2 98  0

0  0	  0 1159424  93796 486640	0	0	 0	 0 112778 2220  0  2 98  0

0  0	  0 1159424  93804 486640	0	0	 0   112 114458 2262  0  2 96  1

0  0	  0 1159424  93804 486640	0	0	 0	 0 110988 2059  0  2 98  0

0  0	  0 1159424  93804 486640	0	0	 0	 0 100836 2047  0  2 98  0

0  0	  0 1160500  93804 486640	0	0	 0	 0 109991 2439  1  2 97  0

0  0	  0 1160292  93804 486644	0	0	 0	 0 109059 2283  0  2 98  0

0  0	  0 1160912  93804 486644	0	0	 0	 0 112452 2397  0  2 97  0

0  0	  0 1160912  93804 486644	0	0	 0	40 114242 2551  0  2 98  0

0  0	  0 1160912  93804 486644	0	0	 0	 0 112925 2288  0  1 99  0

0  0	  0 1160912  93804 486644	0	0	 0	 0 111388 2124  0  2 98  0

0  0	  0 1160912  93808 486644	0	0	 0	24 110988 2316  0  2 98  1

0  0	  0 1160912  93808 486644	0	0	 0	 0 112795 2308  0  2 98  0

0  0	  0 1160912  93808 486644	0	0	 0	 0 108196 2045  0  2 98  0

0  0	  0 1160912  93808 486644	0	0	 0	 0 111822 2261  0  2 98  0

0  0	  0 1160912  93808 486644	0	0	 0	 0 112177 2149  0  2 98  0

2  0	  0 1160912  93808 486644	0	0	 0	 0 113644 2298  0  2 98  0

0  0	  0 1160912  93808 486644	0	0	 0	 0 113814 2521  0  1 99  0

0  0	  0 1160912  93808 486644	0	0	 0	 0 113930 2346  0  2 98  0

0  0	  0 1138828  93808 486644	0	0	 0	 0 116423 4220  7  2 91  0

0  0	  0 1150588  93808 486644	0	0	 0	 0 110999 2512  0  2 98  0

0  0	  0 1150464  93808 486644	0	0	 0	 0 111897 2371  0  2 97  0

0  0	  0 1150464  93808 486644	0	0	 0	 0 114897 2380  0  2 98  0

0  0	  0 1139620  93808 486644	0	0	 0	 4 116542 2816  3  2 94  0

0  0	  0 1145100  93808 486644	0	0	 0	 0 119372 2579  0  2 98  0

0  0	  0 1145224  93808 486644	0	0	 0	20 117031 2680  0  2 96  2

1  0	  0 1145224  93808 486644	0	0	 0	 0 117465 2398  0  2 98  0

0  0	  0 1160944  93808 486644	0	0	 0	 0 120277 3201  1  1 98  0


bw в момента на mpstat и vmstat

1   eth0				  │   30.11MiB	30.21K	│   19.80MiB	25.30K

  2   eth1				  │	7.87MiB	 9.43K	│	7.04MiB	 8.69K

  3   eth2				  │	2.31MiB	 3.67K	│	3.28MiB	 3.80K

  4   eth3				  │   10.07MiB	13.33K	│   20.14MiB	18.18K



root@gw-svoge:~# mpstat -P ALL 1

Linux 3.0.9 (gw-svoge)  04/08/12	    _i686_  (4 CPU)

14:21:37	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:38	 all    0.07    0.00    0.00    1.50    0.00    1.30    0.00    0.00   97.14

14:21:38	   0    0.00    0.00    0.00    0.00    0.00    1.30    0.00    0.00   98.70

14:21:38	   1    0.26    0.00    0.00    0.00    0.00    0.77    0.00    0.00   98.98

14:21:38	   2    0.00    0.00    0.00    0.00    0.00    1.30    0.00    0.00   98.70

14:21:38	   3    0.00    0.00    0.00    6.08    0.00    1.85    0.00    0.00   92.06

14:21:38	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:39	 all    0.07    0.00    0.00    0.00    0.00    1.73    0.00    0.00   98.20

14:21:39	   0    0.00    0.00    0.00    0.00    0.00    2.78    0.00    0.00   97.22

14:21:39	   1    0.29    0.00    0.00    0.00    0.00    1.71    0.00    0.00   98.00

14:21:39	   2    0.00    0.00    0.00    0.00    0.00    1.29    0.00    0.00   98.71

14:21:39	   3    0.00    0.00    0.00    0.00    0.00    1.30    0.00    0.00   98.70

14:21:39	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:40	 all    0.06    0.00    0.00    0.00    0.00    1.82    0.00    0.00   98.12

14:21:40	   0    0.00    0.00    0.00    0.00    0.00    1.39    0.00    0.00   98.61

14:21:40	   1    0.00    0.00    0.00    0.00    0.00    2.11    0.00    0.00   97.89

14:21:40	   2    0.00    0.00    0.00    0.00    0.00    1.80    0.00    0.00   98.20

14:21:40	   3    0.24    0.00    0.00    0.00    0.00    1.94    0.00    0.00   97.82

14:21:40	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:41	 all    0.79    0.00    0.06    0.00    0.00    1.77    0.00    0.00   97.37

14:21:41	   0    0.75    0.00    0.19    0.00    0.00    1.49    0.00    0.00   97.57

14:21:41	   1    0.26    0.00    0.00    0.00    0.00    1.57    0.00    0.00   98.16

14:21:41	   2    1.27    0.00    0.00    0.00    0.00    1.52    0.00    0.00   97.22

14:21:41	   3    0.93    0.00    0.00    0.00    0.00    2.78    0.00    0.00   96.30

14:21:41	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:42	 all    0.56    0.00    0.00    0.00    0.00    2.17    0.00    0.00   97.28

14:21:42	   0    0.24    0.00    0.00    0.00    0.00    2.18    0.00    0.00   97.57

14:21:42	   1    0.24    0.00    0.00    0.00    0.00    1.95    0.00    0.00   97.80

14:21:42	   2    1.67    0.00    0.00    0.00    0.00    2.63    0.00    0.00   95.69

14:21:42	   3    0.00    0.00    0.00    0.00    0.00    1.87    0.00    0.00   98.13

14:21:42	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:43	 all    0.07    0.00    0.00    0.00    0.00    2.12    0.00    0.00   97.81

14:21:43	   0    0.00    0.00    0.00    0.00    0.00    3.06    0.00    0.00   96.94

14:21:43	   1    0.00    0.00    0.00    0.00    0.00    2.08    0.00    0.00   97.92

14:21:43	   2    0.32    0.00    0.00    0.00    0.00    2.53    0.00    0.00   97.15

14:21:43	   3    0.00    0.00    0.00    0.00    0.00    1.03    0.00    0.00   98.97

14:21:43	 CPU    %usr   %nice    %sys %iowait    %irq   %soft  %steal  %guest   %idle

14:21:44	 all    0.07    0.00    0.00    0.00    0.00    2.44    0.00    0.00   97.49

14:21:44	   0    0.00    0.00    0.00    0.00    0.00    2.68    0.00    0.00   97.32

14:21:44	   1    0.00    0.00    0.00    0.00    0.00    2.34    0.00    0.00   97.66

14:21:44	   2    0.29    0.00    0.00    0.00    0.00    2.32    0.00    0.00   97.39

14:21:44	   3    0.00    0.00    0.00    0.00    0.00    2.44    0.00    0.00   97.56

Edited by Mile
Link to comment
Share on other sites

Доста добри резултати, на каква машина е теста.

Преди 3 седмици много ми трябваха такива dual карти, но си реших проблема от стемо.

Картите са доста корави, който ги вземе няма да сгреши.

“...ние, можещите водени от незнаещите, вършим невъзможното за кефа на неблагодарните. И сме направили толкова много, с толкова малко, за толкова дълго време, че сме се квалифицирали да правим всичко от нищо...”, Константин Йозеф Иречек, 13.12.1881 г.

Link to comment
Share on other sites

На Asus server board с quad core 9550 12mb кеш, но това е quad картата. Dual-ите са с 82571EB. Quad-a 82576

Сравнително аналогични резултати при този трафик. Предполагам нагоре към 600-700 FD ще се усети разлика.

Link to comment
Share on other sites
