Продава се: Aruba 2930F 48G PoE+ 4SFP Switch (JL262A)


111111

Recommended Posts

  • Администратор
Model: HPE JL262A - Aruba 2930F Switch
Detail: Aruba 2930F 48G PoE+ 4SFP Switch



https://www.arubanetworks.com/assets/ds/DS_2930FSwitchSeries.pdf





Чисто нов

Цена 1700 лв.

/налични 2 броя/

Ако се вземат двата отстъпка.

Телефон 088две6две4три44

Локация София

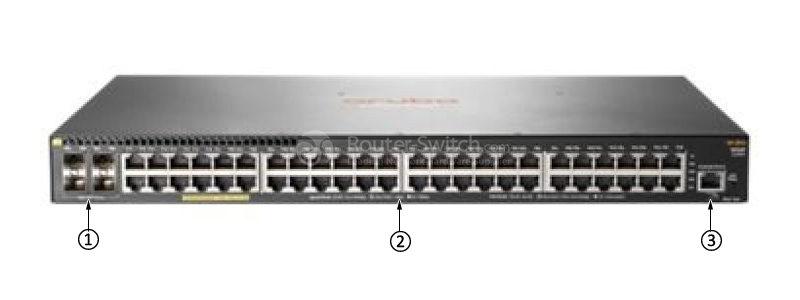

Figure 1 shows the front panel of HPE Aruba JL262A.

HPE-Aruba-JL262A-Front-Panel

Note:

4 × SFP

48 × RJ-45 autosensing 10/100/1000 PoE+ ports

RJ Serial Console Port

Figure 2 shows the back panel of HPE Aruba JL262A.

HPE-Aruba-JL262A-Back-Panel

Note:

Cable tie eyelet

Ground point

AC power connector

JL262A Specification

JL262A Specification

Type

Aruba 2930F 48G PoE+ 4SFP Switch

System specifications

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only

Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port

Memory and processor

Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC

Management

Aruba AirWave Network Management; IMC – Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)

Performance specifications

1000 Mb Latency

< 3.8 μs (64-byte packets)

10 Gbps Latency

N/A

Throughput

up to 77.4 Mp/s

Switching capacity

104 Gb/s

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

32768 entries

Physical specifications

Dimensions

4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)

1U height

Electrical specifications

80plus.org Certification

Silver

Description

N/A

Maximum heat dissipation

1652.13 kJ/hr (1566 BTU/hr )

Voltage

100 - 127 / 200 - 240 V ac, rated

Current

5.1/2.5 A

Maximum power rating

459 W

Idle power

48.6 W

Frequency

50/60 Hz

PoE power

370 W PoE+

Environmental specifications

Operating temperature

0°C to 45°C (32°F to 113°F)

up to 5000 Feet

- 0C to 40C (32F to 104F) up to 10000 Feet

Operating relative humidity

15% to 95% @ 40°C ( 104°F)

noncondensing

Nonoperating/Storage temperature

-40°C to 70°C (-40°F to 158°F)

up to 15000 Feet

Nonoperating/Storage temperature

15% to 95% @65°C ( 149°F)

noncondensing

Acoustic

Power: 55.7 dB, Pressure: 41.7 dB

Airflow direction

Side-to-side

Safety certifications

Safety

UL 60950-1, 2nd Edition

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

IEC 60950-1:2005 +A1:2009 +A2:2013

CSA 22.2 No. 60950-1-07 2nd

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Emissions

EN 55022:2010/CISPR 22 Class A

FCC CFR 47 Part 15 Class A

VCCI Class A; ICES-003 Class A

CNS 13438

Immunity

Generic:EN 55024:2010/CISPR 24

ESDIEC 61000-4-2

RadiatedIEC 61000-4-3

EFT/BurstIEC 61000-4-4

SurgeIEC 61000-4-5

ConductedIEC 61000-4-6

Power frequency magnetic fieldIEC 61000-4-8

Voltage dips and interruptionsIEC 61000-4-11

HarmonicsIEC/EN 61000-3-2

FlickerIEC/EN 61000-3-3
