Mikrotik RB2011UAS-2HDN-IN и Huawei 3372 от Виваком


M4D3V1L
 Share

Recommended Posts

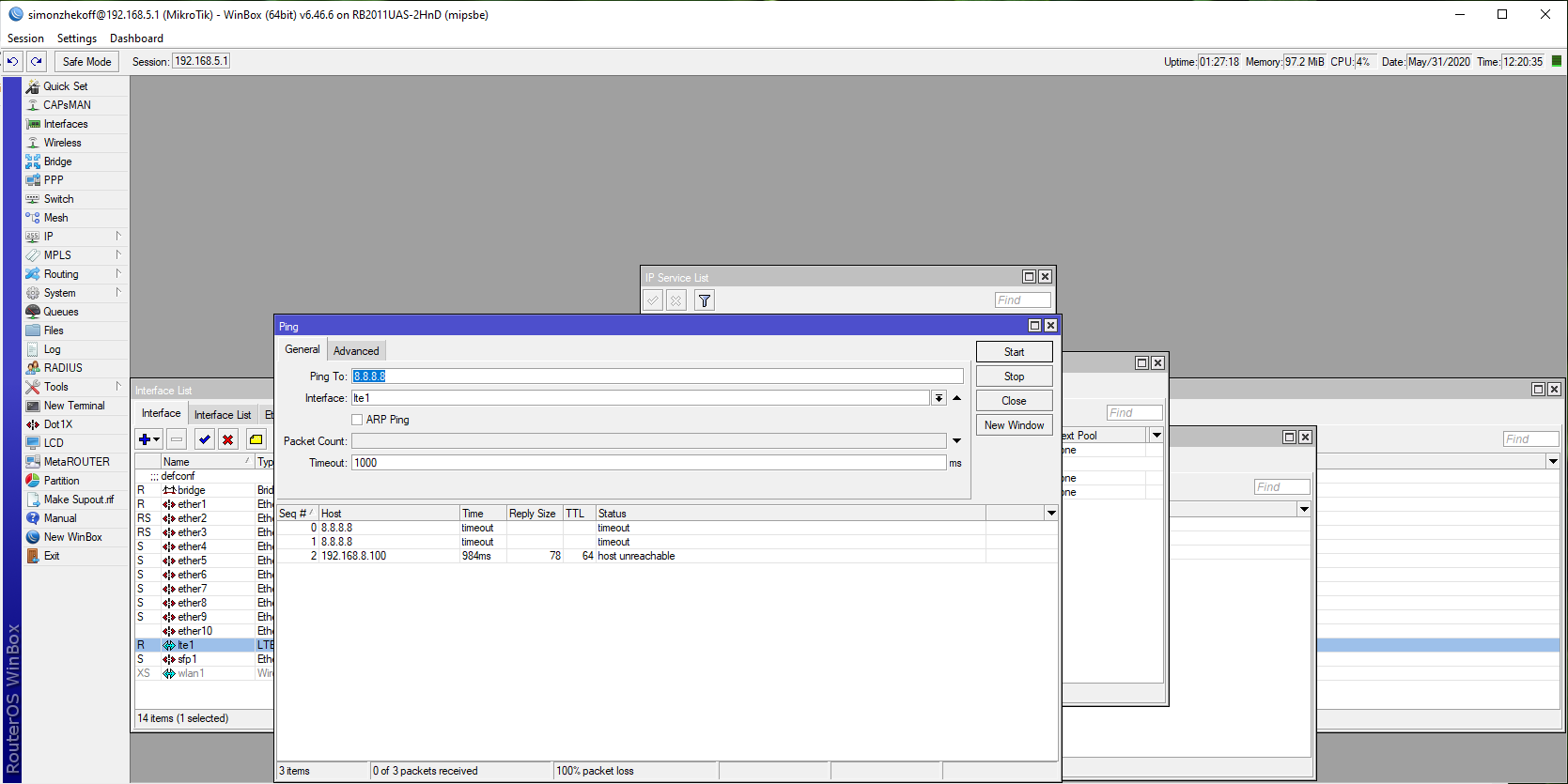

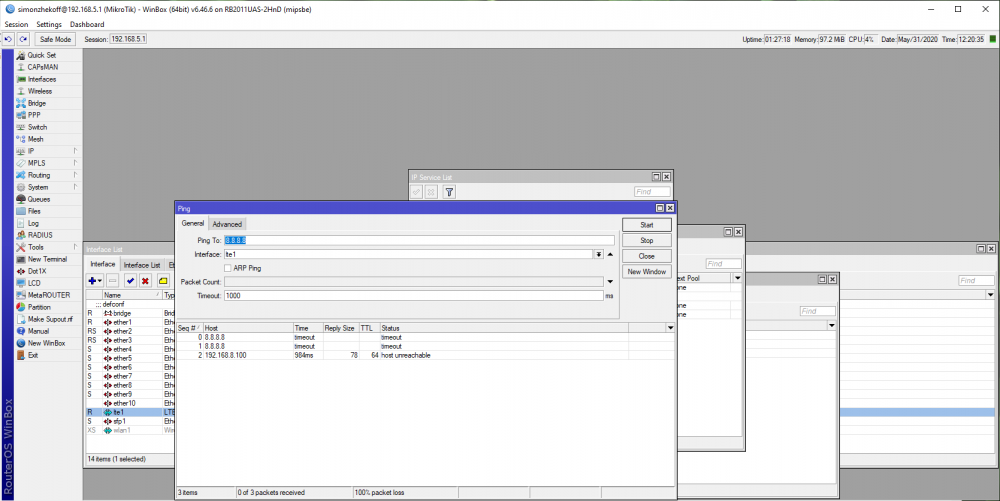

Здравейте, свързах горепосочените у-ва и микротика си откри всичко като хората, но когато пробвам да пингна 8.8.8.8 например timeout-ва и дава 192.168.8.100 като unreachable.Какво пропускам?
image.png.c78e63370c87a309727768a03445be92.pngimage.png.d3bc4b57f4bb5d09a5f7a07a8d42d222.pngimage.png.799d22eb676e3afd324ac55a84fa5d41.pngimage.png.0103d9b9663a80a3fabe28bacce106c8.png


Edited by M4D3V1L
Link to comment
Share on other sites

  • Administrator

Без експорт на конфигурацията няма как да се разбере.

синия цвят = неактивно правило или такова с нисък приоритет.

Харесай поста ^^^
acer.gif htc.gifsigpic4024_2.gif

Форумът е за взаимопомощ а не за свършване на чужда работа


ɹɐǝɥ uɐɔ noʎ ǝɹoɯ ǝɥʇ 'ǝɯoɔǝq noʎ ɹǝʇǝınb ǝɥʇ

Link to comment
Share on other sites

На 1.06.2020 г. at 8:47, 111111 написа:

Без експорт на конфигурацията няма как да се разбере.

синия цвят = неактивно правило или такова с нисък приоритет.

/interface lte
set [ find ] mac-address=0C:5B:8F:27:9A:64 name=lte1
/interface bridge
add admin-mac=D4:CA:6D:31:F3:9E auto-mac=no comment=defconf name=bridge
/interface ethernet
set [ find default-name=ether1 ] speed=100Mbps
set [ find default-name=ether2 ] speed=100Mbps
set [ find default-name=ether3 ] speed=100Mbps
set [ find default-name=ether4 ] speed=100Mbps
set [ find default-name=ether5 ] speed=100Mbps
set [ find default-name=ether6 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether7 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether8 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether9 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether10 ] advertise=\
    10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa-psk,wpa2-psk mode=\
    dynamic-keys supplicant-identity=MikroTik wpa-pre-shared-key=\
     wpa2-pre-shared-key=
add authentication-types=wpa2-psk eap-methods="" management-protection=\
    allowed mode=dynamic-keys name=siso supplicant-identity="" \
    wpa2-pre-shared-key=
/interface wireless
set [ find default-name=wlan1 ] band=2ghz-onlyn channel-width=20/40mhz-eC \
    country=bulgaria distance=indoors frequency=2472 installation=indoor \
    mode=ap-bridge preamble-mode=short security-profile=siso ssid=\
    mikrotikwifi wireless-protocol=802.11 wmm-support=enabled wps-mode=\
    disabled
/ip ipsec profile
add enc-algorithm=aes-256,aes-192,3des name=profile_1
/ip ipsec peer
# This entry is unreachable
add name=peer2 passive=yes profile=profile_1
/ip ipsec proposal
set [ find default=yes ] enc-algorithms=aes-256-cbc,3des pfs-group=none
/ip pool
add name=default-dhcp ranges=192.168.5.2-192.168.5.254
add name=L2TP ranges=10.8.0.2-10.8.0.100
add comment=LTE name=LTE ranges=192.168.8.2-192.168.8.150
/ip dhcp-server
add address-pool=default-dhcp disabled=no interface=bridge name=LAN
/ip ipsec mode-config
add address-pool=L2TP name=vpndhcp system-dns=no
/ppp profile
set *FFFFFFFE dns-server=8.8.8.8 local-address=192.168.5.1 remote-address=\
    L2TP use-encryption=required use-mpls=yes
/user group
set full policy="local,telnet,ssh,ftp,reboot,read,write,policy,test,winbox,pas\
    sword,web,sniff,sensitive,api,romon,dude,tikapp"
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=ether6
add bridge=bridge comment=defconf interface=ether7
add bridge=bridge comment=defconf interface=ether8
add bridge=bridge comment=defconf interface=ether9
add bridge=bridge comment=defconf interface=sfp1
add bridge=bridge comment=defconf interface=wlan1
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface l2tp-server server
set authentication=mschap2 enabled=yes ipsec-secret= use-ipsec=yes
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/ip address
add address=192.168.5.1/24 comment=defconf interface=bridge network=\
    192.168.5.0
/ip dhcp-client
add comment=defconf disabled=no interface=ether1
add default-route-distance=2 disabled=no interface=lte1
/ip dhcp-server network
add address=192.168.5.0/24 comment=LAN dns-server=1.1.1.1,1.0.0.1 gateway=\
    192.168.5.1
/ip dns
set allow-remote-requests=yes servers=1.1.1.1,1.0.0.1
/ip dns static
add address=192.168.88.1 name=router.lan
/ip firewall filter
add action=accept chain=input in-interface=lte1
add action=accept chain=input comment="Allow UDP VPN 1" dst-port=500 \
    in-interface=ether1 protocol=udp
add action=accept chain=input comment="Allow VPN 2" connection-state=new \
    dst-port=1701 in-interface=ether1 protocol=udp
add action=accept chain=input comment="Allow VPN 3" dst-port=4500 \
    in-interface=ether1 protocol=udp
add action=accept chain=forward in-interface=ether1 protocol=ipsec-esp
add action=accept chain=input comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
    invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
    in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
    ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
    ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
    connection-state=established,related
add action=accept chain=forward comment=\
    "defconf: accept established,related, untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid
add action=drop chain=forward comment=\
    "defconf:  drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
    connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
    ipsec-policy=out,none out-interface-list=WAN
add action=masquerade chain=srcnat out-interface=lte1
/ip ipsec identity
# Wrong mode-config
# address ID must be used in main mode or use my-id=auto!
add generate-policy=port-override mode-config=request-only my-id=user-fqdn \
    peer=peer2 remote-id=ignore secret=
/ip service
set telnet disabled=yes
set ftp disabled=yes
/ip traffic-flow
set enabled=yes
/lcd
set backlight-timeout=20m
/port firmware
set directory=pub
/system clock
set time-zone-name=Europe/Sofia
/system routerboard usb
set usb-mode=force-host
/tool graphing interface
add interface=bridge store-on-disk=no
add interface=ether2 store-on-disk=no
add interface=ether3 store-on-disk=no
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
/tool traffic-monitor
add interface=ether1 name=tmon1 threshold=0




Link to comment
Share on other sites

  • Administrator

При дистанция 2 няма тръгне нормално.

Имаш нещо с по висок приоритет.

Харесай поста ^^^
acer.gif htc.gifsigpic4024_2.gif

Форумът е за взаимопомощ а не за свършване на чужда работа


ɹɐǝɥ uɐɔ noʎ ǝɹoɯ ǝɥʇ 'ǝɯoɔǝq noʎ ɹǝʇǝınb ǝɥʇ
